WIRELESS VIBRATION + ULTRASOUND SENSOR

Industrial Vibration Sensors, Built for Real Plants

Monitor vibration, ultrasound, temperature, and RPM: automatically, over LTE and in real time.

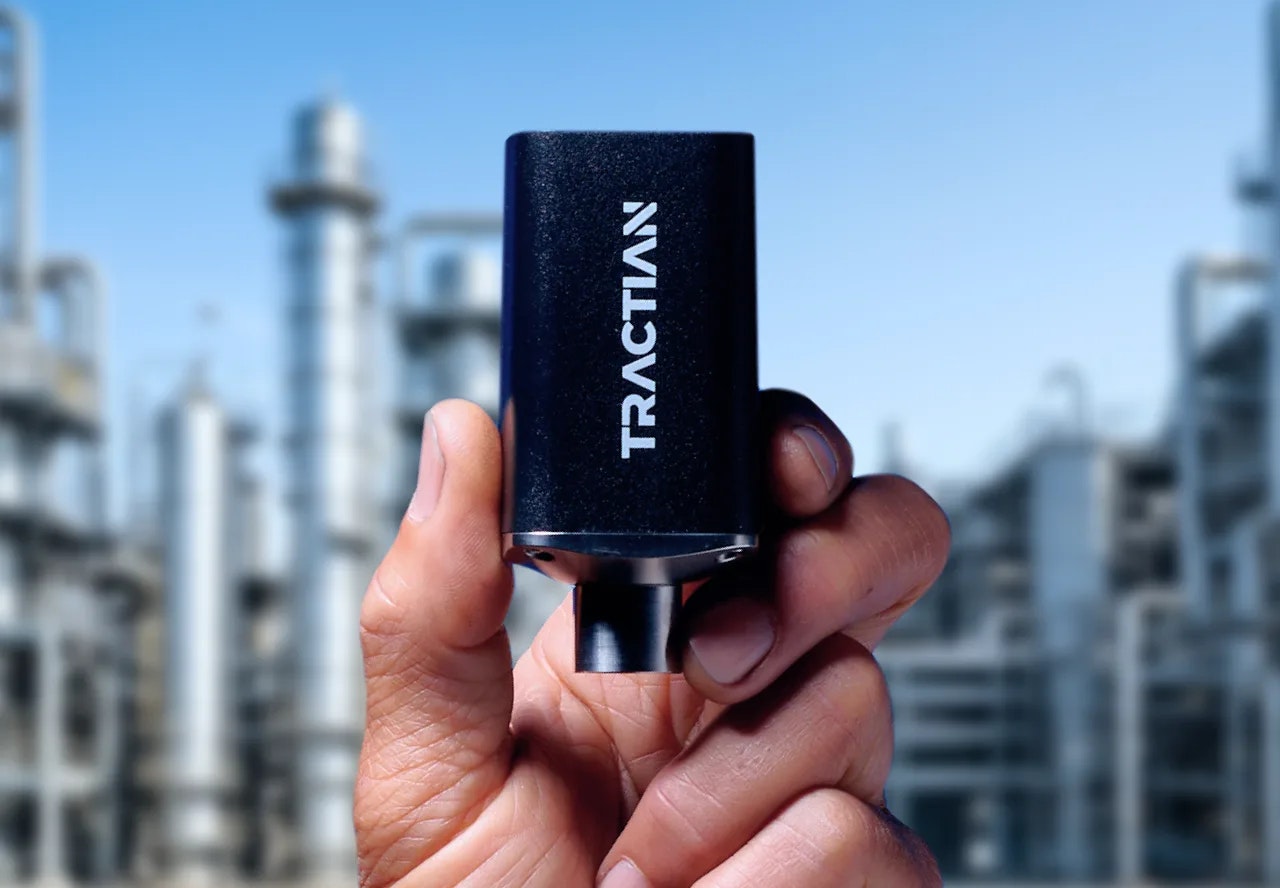

Vibration Analysis Header Image

  • Battery life

    3-5 years

  • Operating temperature

    -40°F to 250°F

  • Ingress

    IP69K sealed

  • Connectivity

    4G/LTE

    330 ft through obstacles / 3,300 ft LoS

  • Sampling Rate

    Up to 64kHz

    Detailed vibration samples.

  • Hazardous locations

    Class I Div 1

    ATEX/IECEx/NFPA

See all specifications

TECHNICAL SPECIFICATIONS

Tractian Condition Monitoring Sensor

Measurements

Sampling Rate

From 0 Hz to 64,000 Hz

Acceleration

Up to 60 g

Velocity

Up to 100 mm/s RMS

Temperature

From -40°F to 250° F (-40°C to 120°C)

Magnetometer

Up to 15000 RPM

Sample Configuration

196,608 lines (per axis)

Default Setting

Samples every 5 minutes

Sampling Frequency

500Hz (64s), 1000 Hz (32s), 2000 Hz (16s), 4000Hz (8s) , 8000Hz (4s) 16000Hz (2s), 32000Hz (1s)

Wireless Communication

Frequency

915MHz ISM

Protocol

IEEE 802.15.4g

Connectivity

LTE/4G mobile networks, with no need to rely on industrial Wi-Fi

Bands

6 frequency channels, dynamically assigned

Internal Environment Range

Up to 330ft (100m) between sensor and receiver, depending on the industrial plant topology

Line of Sight Range

Up to 3,300ft (1km) between sensor and receiver, depending on the industrial plant topology

Physical Characteristics

Dimensions

40 (W) x 71 (H) x 40 (D) mm or 1.6 (W) x 2.8 (H) x 1.6 (D) in, excluding sensor base

Weight

180g / 6.4 oz (sensor)
22g / 0.8oz (shorter base)
50g / 1.75oz (taller base)

External Material

Lexan™

Fixation

Sensor base must be glued
or screwed to the asset

Electronic Sealing

100% Resin Coated

Cybersecurity

Sensor to Receiver Communication

Encrypted AES (256 bits)

Certification

FCC

Environmental Characteristics

IP Rating

IP69K

Humidity

Suitable for installation in high humidity areas

Operating Temperature

From -40°F to 250° F (-40°C to 120°C)

Hazardous Locations

Complies with ATEX, NFPA 70 CL1, CL2, and CL3 (All Division I).

POWER SOURCE

Battery

Lithium battery

Duration

Between 3-5 years on default settings

Adverse Factors

Temperature, transmission distance, and data acquisition configuration

Ex Badge

Class I Div 1

ATEX/IECEx/NFPA compliant

IP69K

IP69K

washdown-safe; dust/water sealed

FCC/CE Badge

FCC/CE

radio compliance

Iso BadgeAICPA Badge

Security & Privacy

ISO 27001 certified; SOC 2 Type II audited

How our vibration sensor works

1

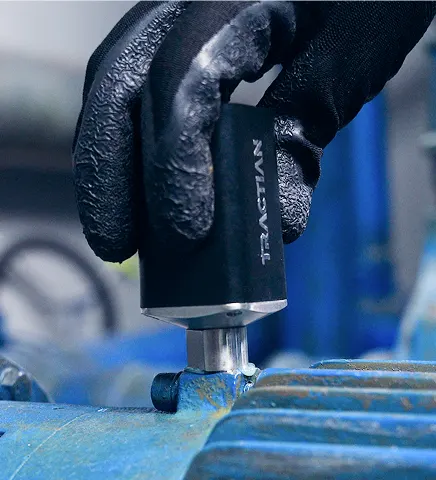

Install

Adhesive or drill-and-tap, and you’re up and running in minutes.

2

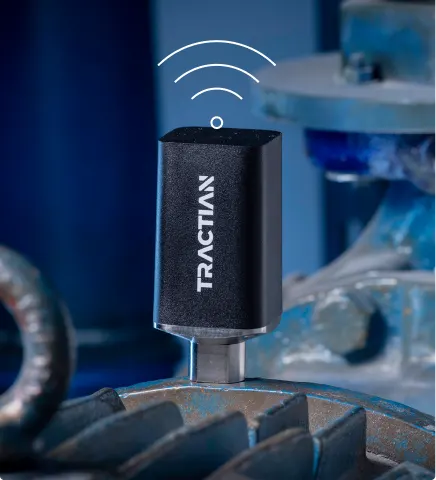

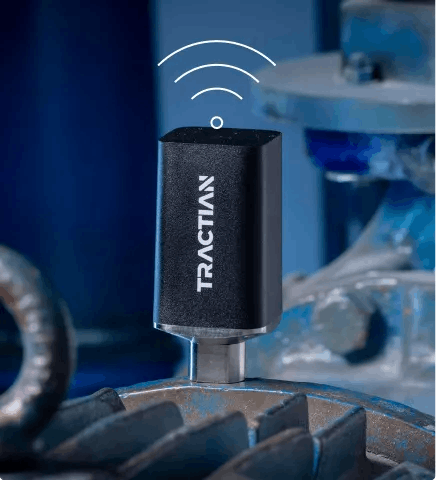

Connect

Sensor goes live over LTE; no plant Wi-Fi or wiring needed.

3

Monitor

Track real-time vibration, ultrasound, temperature, and RPM remotely.

4

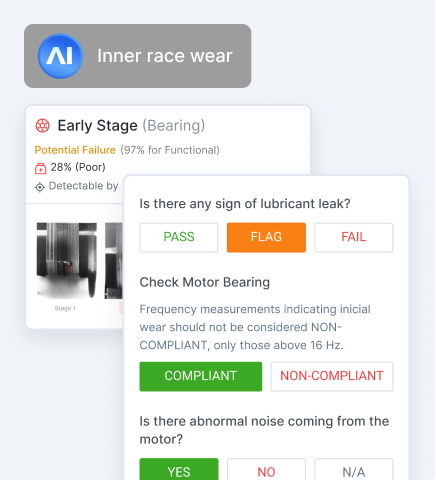

Detect & Diagnose

Alerts tell you what’s wrong, how severe it is, and what to do - with evidence to prove it.

5

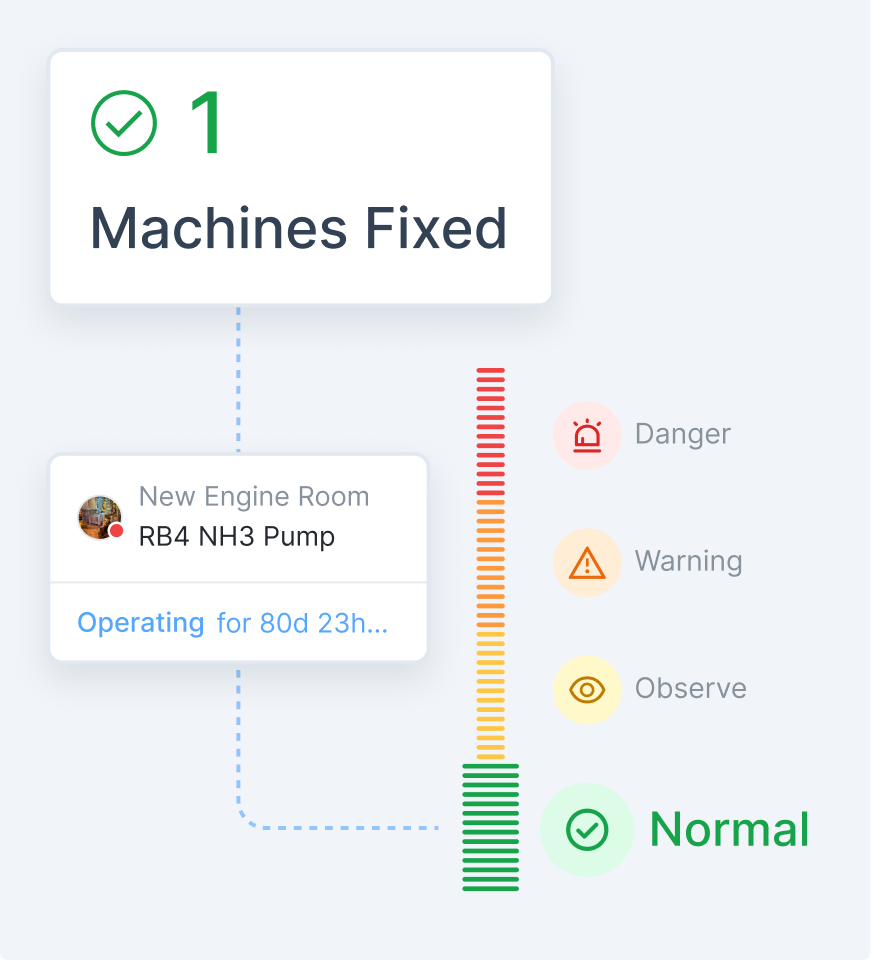

Resolve

Get clear next steps to fix your machines, then verify with post-repair trends.

No better coverage than Tractian for downtime protection.

Monitor Rotating Assets

  • Axial Fans

  • Bearings

  • Centrifugal Compressors

  • Centrifugal Fans

  • HVACs

  • Hydraulic Pumps

  • Industrial Sleeves

  • Injection Molding Machines

    • Detect Failure Modes

  • Bearing Erosion

  • Bearing Wear

  • Belt Wear

  • Blade Passage

  • Overvoltage

  • Overload

  • Operational Problems

  • Phase Unbalance

    • Try the only ultrasound + vibration sensor on the market.
