Key Points
- A predictive maintenance tool is best understood as an ecosystem of sensing hardware, analytical software, and maintenance management systems that work together, not as a single product category.
- Unplanned downtime costs the world's 500 largest companies approximately $1.4 trillion annually, equal to 11% of total revenues, according to Siemens' True Cost of Downtime 2024 report.

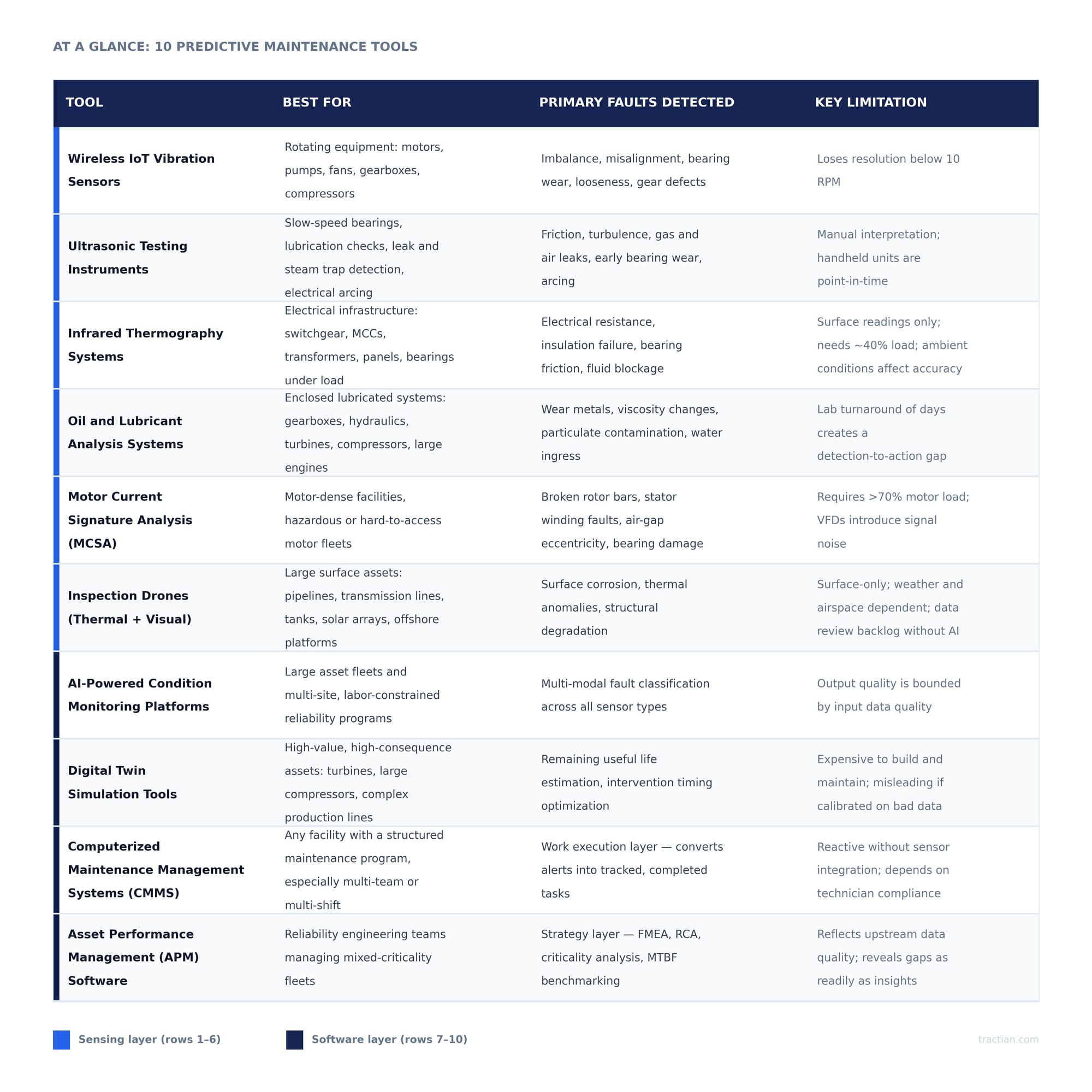

- The tools below represent ten distinct data layers. Every gap in coverage is a gap in the decision confidence your program can produce.
The Ecosystem Behind Every Good PdM Program
A predictive maintenance program is only as reliable as the weakest layer in its tool stack. Teams that invest in sensing technology without the analytical software to interpret it, or in software platforms without the maintenance management infrastructure to act on alerts, find themselves data-rich but operationally reactive.
The tools in this article are organized to reflect that reality. The first six entries cover sensing and inspection technologies, the physical instruments that generate condition data across different failure domains. The final four cover the software layers that transform that data into prioritized, actionable maintenance decisions.
Reading them in sequence reveals the architecture of a mature condition-based maintenance program and, just as usefully, makes visible the gaps that point solutions alone can't close.
Wireless IoT Vibration Sensors
The Mechanism (How it works): A vibration sensor uses a triaxial accelerometer to capture the frequency spectrum of a rotating asset, establishing a baseline signature and flagging deviations that indicate developing faults.
Ideal Applications: Electric motors, centrifugal pumps, fans, gearboxes, and compressors — essentially any asset where rotating imbalance, misalignment, or bearing wear is a primary failure risk.
The Predictive Advantage: Vibration monitoring catches faults like looseness, bearing erosion, and gear wear early in the degradation window, well before performance degradation becomes visible or audible.
Ecosystem Integration: Data is transmitted continuously to a cloud or edge platform, where AI algorithms diagnose fault type and severity, feeding alerts and CMMS work-order triggers downstream.
Key Limitation / Consideration: Vibration analysis loses diagnostic resolution on low-speed equipment, typically below 10 RPM, where signal amplitude is too low to isolate meaningful fault frequencies from background noise.
Ultrasonic Testing Instruments
The Mechanism (How it works): An ultrasonic instrument uses a piezoelectric transducer to detect high-frequency sound emissions between 20 kHz and 200 kHz, capturing friction, turbulence, and impacting events that fall outside the effective range of vibration analysis.
Ideal Applications: Slow-speed bearings, lubrication condition assessment, compressed air and gas leak detection, steam trap testing, and electrical arcing in panels and switchgear.
The Predictive Advantage: Because ultrasound detects friction before it escalates into measurable vibration, it functions as an earlier warning layer in the failure timeline and a useful triage tool for identifying which assets warrant deeper vibration investigation.
Ecosystem Integration: Route-based data uploads to condition monitoring platforms or CMMS systems for trending, and continuous wireless ultrasonic sensors are increasingly available on the same IoT infrastructure as vibration devices.
Key Limitation / Consideration: Without automated analysis, data interpretation requires training and experience, and handheld instruments capture point-in-time readings rather than continuous condition data.
Infrared Thermography Systems
The Mechanism (How it works): Infrared thermography uses thermal imaging cameras to map surface heat distribution, detecting abnormal hot spots that indicate electrical resistance, bearing friction, insulation failure, or fluid blockage.
Ideal Applications: MCC cabinets, switchgear, transformers, motor windings, distribution panels, bearings under load, and piping and valves — wherever heat signatures of developing faults appear before mechanical failure.
The Predictive Advantage: Electrical infrastructure is where this tool is most decisive, providing a rapid whole-system view of thermal anomalies that vibration analysis alone won't surface.
Ecosystem Integration: Non-contact and non-destructive, thermography integrates naturally into scheduled inspection routes, with findings logged in a CMMS and contributing to FMEA documentation over time.
Key Limitation / Consideration: Thermography detects surface conditions only and requires equipment operating at roughly 40% load or higher for accurate readings. Ambient factors like wind and sunlight can mask anomalies, and misreading thermal patterns without adequate training can produce false confidence as readily as false alarms.
Oil and Lubricant Analysis Systems
The Mechanism (How it works): Oil analysis examines in-service lubricant samples for wear metal content, changes in viscosity, particulate contamination, water ingress, and additive depletion using spectroscopy, particle counting, and ferrography.
Ideal Applications: Gearboxes, hydraulic systems, turbines, reciprocating compressors, and large engines — where internal wear isn't surfaced by vibration or thermal measurement until the damage is already significant.
The Predictive Advantage: Wear metal particles become detectable in oil samples before any other condition signal registers, giving maintenance teams an early intervention window that no other tool type in this list can match for lubricated, enclosed systems.
Ecosystem Integration: Lab results trends on condition-monitoring platforms or CMMS systems, and inline sensors provide continuous particle and moisture data that trigger alerts for timely sampling.
Key Limitation / Consideration: Traditional lab-based oil analysis has a turnaround time of days, creating a gap between when the fault signal occurs and when the team receives it. Inline sensors reduce but don't eliminate that gap.
Motor Current Signature Analysis (MCSA)
The Mechanism (How it works): Motor Current Signature Analysis monitors the stator current waveform of AC induction motors, identifying frequency sidebands in the current spectrum that correspond to specific mechanical and electrical fault conditions.
Ideal Applications: Motor-dense facilities, hazardous or hard-to-access locations, and large motor fleets where manual physical inspection is impractical.
The Predictive Advantage: MCSA detects broken rotor bars, stator winding faults, air-gap eccentricity, bearing damage, and load-side mechanical faults without requiring any sensor installation on the asset itself — all hardware installs in the motor control cabinet.
Ecosystem Integration: AI classification algorithms assign fault types and severity, with findings flowing directly to condition-monitoring dashboards and CMMS work orders.
Key Limitation / Consideration: Reliable fault detection typically requires motor load above 70%, and variable frequency drives introduce harmonic noise that complicates current signal interpretation in facilities where VFD deployment is widespread.
Inspection Drones with Thermal and Visual Imaging
The Mechanism (How it works): Drones equipped with high-definition cameras and thermal imaging sensors conduct aerial inspections of infrastructure, large assets, and locations where human access is dangerous or logistically prohibitive.
Ideal Applications: Mining facilities, above-ground pipelines, transmission lines, rooftop HVAC units, offshore platforms, large storage tanks, and solar arrays.
The Predictive Advantage: Thermal drone surveys identify heat anomalies, surface corrosion, and structural degradation across large surface areas in a fraction of the time manual inspection requires, with AI-assisted image analysis increasingly automating defect classification across successive flights.
Ecosystem Integration: Findings upload to asset management platforms, link to CMMS work orders, and feed FMEA records for prioritized follow-up.
Key Limitation / Consideration: Drones capture surface and thermal conditions only and do not replace internal condition-monitoring tools. Operations are weather-dependent and subject to airspace constraints. Without automated image analysis, the rapidly generated volume of data quickly creates its own review backlog.
AI-Powered Condition Monitoring Platforms
The Mechanism (How it works): An AI-powered condition monitoring platform ingests multi-modal sensor data, applies machine learning algorithms to establish asset-specific baselines, classifies fault types, and generates prescriptive alerts with severity levels and recommended actions.
Ideal Applications: Large asset fleets, multi-site operations, and labor-constrained reliability programs where manual data interpretation at scale isn't feasible.
The Predictive Advantage: AI correlates signals across multiple measurement points, adjusts for operating conditions like variable load and ambient temperature, and continuously improves its accuracy through feedback from verified interventions — producing diagnostic confidence that threshold-based alerting systems can't match.
Ecosystem Integration: The platform acts as the analytical hub of the full tool stack, pushing alerts downstream to the CMMS for work order execution.
Key Limitation / Consideration: Platform output quality is bounded entirely by input data quality. A poorly designed sensor network, an asset registry with missing parameters, or inconsistent data governance produces diagnostics that erode rather than build team confidence.
Digital Twin Simulation Tools
The Mechanism (How it works): A digital twin is a virtual model of a physical asset that replicates operating behavior using real-time sensor data, engineering specifications, and physics-based or data-driven simulation, enabling estimation of remaining useful life and maintenance timing optimization without physical intervention.
Ideal Applications: High-value, high-consequence assets like turbines, large compressors, and complex production lines where the cost of premature replacement and the cost of failure are both high.
The Predictive Advantage: By simulating asset behavior under different load and stress scenarios, teams can test intervention timing and predict failure horizons with more precision than real-time condition data alone provides.
Ecosystem Integration: Digital twins layer on top of AI-based condition-monitoring platforms, and feed recommended intervention timelines to APM and CMMS systems.
Key Limitation / Consideration: High-fidelity digital twins are expensive and time-intensive to build and maintain. A twin calibrated on outdated or incomplete sensor data produces misleading RUL estimates, which is a more operationally dangerous outcome than having no estimate at all.
Computerized Maintenance Management Systems (CMMS)
The Mechanism (How it works): A CMMS is a central platform for work order lifecycle management, preventive maintenance scheduling, inventory control, compliance tracking, and maintenance analytics that converts condition insights into actionable maintenance work.
Ideal Applications: Any facility with a structured maintenance program. Particularly operations managing large technician teams, multi-shift schedules, spare parts inventory, and regulatory compliance documentation.
The Predictive Advantage: The CMMS is the execution layer that ensures alerts from condition monitoring tools result in assigned, tracked, and completed maintenance tasks rather than unacknowledged notifications.
Ecosystem Integration: When natively integrated with condition-monitoring sensors, the CMMS receives automated work-order triggers with fault type, severity, and recommended action, closing the loop between detection and execution.
Key Limitation / Consideration: Without sensor integration, a CMMS is still fundamentally reactive. Data quality depends on technician compliance, and low-adoption systems undermine the accuracy of analytics that make planning and scheduling possible.
Asset Performance Management and Reliability Software
The Mechanism (How it works): Asset Performance Management (APM) software brings criticality analysis, FMEA, root cause analysis, and reliability strategy management into a structured framework, connecting condition data from across the tool stack to asset-level maintenance decisions.
Ideal Applications: Reliability engineering teams managing complex, mixed-criticality asset fleets where failure-mode documentation, maintenance-strategy refinement, and mean time between failure benchmarking drive planning decisions.
The Predictive Advantage: APM aligns intervention timing with the P-F curve, ensuring highly critical assets receive earlier warnings and tighter tolerances while less critical assets allow more scheduling flexibility, balancing risk and cost across the full fleet.
Ecosystem Integration: APM serves as the analytical strategy layer above the CMMS, turning completed work order outcomes, condition monitoring alerts, and failure history into continuously refined asset maintenance strategies.
Key Limitation / Consideration: APM reflects whatever data quality exists upstream. Organizations without a structured foundation of condition monitoring data, a populated asset registry, and clean work order history will find that APM reveals their data gaps as readily as it surfaces reliability insights.
Tractian: One Platform Across the Full Tool Stack
Most predictive maintenance programs are built from multiple vendors, with condition data in one system, maintenance execution in another, and reliability analysis in a third. The diagnostic value of each layer is real, but the gaps between them, where alerts fail to reach execution or work order outcomes never feed back into the reliability strategy, are where programs stall.
Tractian closes that loop in a single platform. The Smart Trac condition-monitoring sensor combines vibration and ultrasonic monitoring into a single wireless device, covering the two most critical sensing layers simultaneously. It detects all major failure modes across rotating assets and produces an initial health report within five days of installation, backed by 3.5 billion+ samples from assets monitored globally.
That sensing layer connects natively to Tractian's AI-powered predictive maintenance software, which classifies faults with prescriptive severity and recommended actions, eliminating the interpretation bottleneck that limits most standalone platforms.
From there, alerts flow directly into Tractian's maintenance execution platform, generating prioritized work orders from its preventive maintenance software without manual handoff. Completed interventions feed back into Tractian's APM module, which tracks reliability outcomes, manages FMEA and RCA workflows, and continuously refines asset strategy.
The result is a closed loop from fault detection to diagnosis to execution to reliability learning, in one interface, with one vendor. Published benchmarks reflect it: an 11% increase in asset availability, 38% increase in wrench time, and payback in under four months. For teams evaluating where fragmentation is costing them the most, this overview of Tractian's combined vibration and ultrasonic sensing approach is a useful starting point.
Explore Tractian’s predictive maintenance solutions to see how high-quality, decision-grade data paired with AI-powered maintenance execution workflows keeps you ahead of the competition.
FAQs about Predictive Maintenance Tools
- What is a predictive maintenance tool?
A predictive maintenance tool is any technology that monitors equipment condition in real time to anticipate failures before they occur. In practice, effective programs combine multiple tools: sensing hardware to collect data, AI platforms to interpret it, and maintenance management software to execute on it. Tractian's platform integrates all three layers in a single ecosystem.
- How is predictive maintenance different from preventive maintenance?
Preventive maintenance follows fixed time or usage intervals regardless of the equipment's actual condition, while predictive maintenance intervenes only when condition data indicate a developing fault. The distinction matters financially: preventive schedules generate unnecessary labor and parts consumption, while predictive programs reduce both. The shift requires reliable condition monitoring infrastructure as the foundation.
- Which predictive maintenance tools work best for rotating equipment?
Wireless IoT vibration sensors are the primary tool for monitoring rotating equipment, covering failure modes such as bearing wear, misalignment, and imbalance. Ultrasonic instruments complement vibration analysis for slow-speed assets and lubrication monitoring, and MCSA adds electrical fault detection for motor-driven systems. Combining these three sensing layers gives rotating equipment the broadest fault coverage.
- Can predictive maintenance tools reduce unplanned downtime?
Yes, and reasons to choose predictive maintenance are evidenced consistently across industries. Early fault detection allows maintenance teams to schedule interventions during planned windows rather than responding to breakdowns, directly cutting emergency repair costs and lost production time. Tractian customers achieve payback in under four months on average, with an 11% increase in asset availability as a published benchmark.
- How do predictive maintenance tools integrate with a CMMS?
When condition-monitoring sensors detect an anomaly, the diagnostic alert should automatically flow into the CMMS as a prioritized work order, complete with fault type, severity, and recommended action. This closed loop, from detection to execution to outcome logging, is what separates a predictive program from a monitoring exercise. Tractian's native sensor-to-CMMS integration delivers this without third-party connectors or manual handoff.
